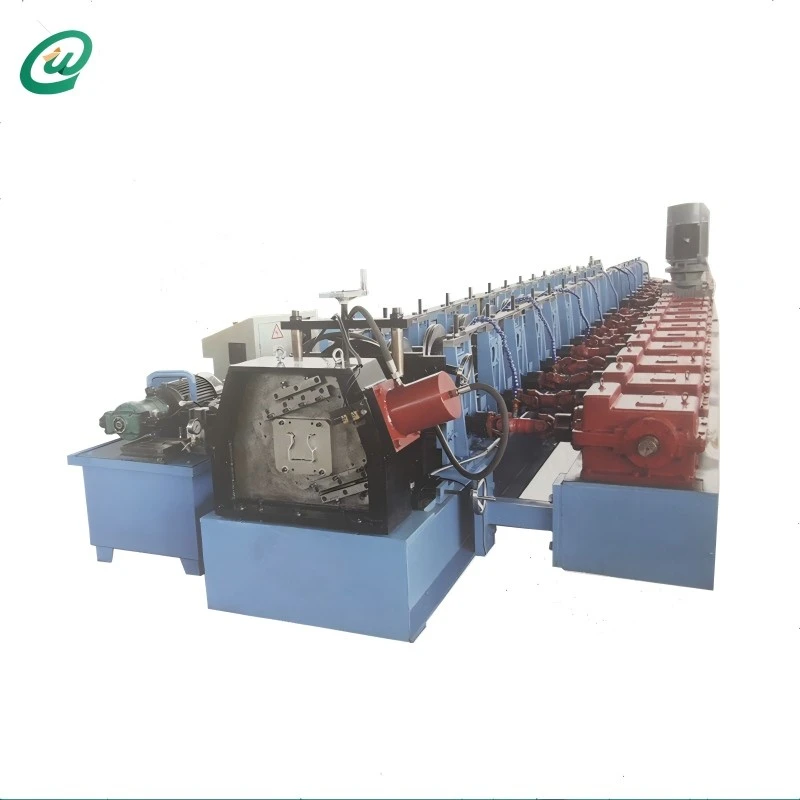

Hangzhou IUWON Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of batten roll forming machine in China. With abundant experience, we warmly welcome you to buy high quality batten roll forming machine from our factory. Good service and reasonable price are available.
Product Specifications
|
Machine Type
|
Cold Bending Machine / Roof Tile Press
|
|
Applicable Materials
|
Galvanized Steel, Galvalume (Al-Zn), Pre-painted Steel (PPGI), Aluminum, Zincalume
|
|
Material Thickness
|
0.3 mm – 0.8 mm (Customizable)
|
|
Forming Speed
|
8 – 15 m/min (Adjustable via Inverter for smooth material flow)
|
|
Roller Stations
|
18 – 24 stations (Optimized for panel profile complexity)
|
|
Roller Material
|
High-grade GCr15 bearing steel with hard chrome plating for durability
|
|
Main Motor Power
|
7.5 kW (Ensures stable operation during long runs)
|
|
Control System
|
Advanced PLC Touch Screen (e.g., Siemens/Mitsubishi) for easy operation
|
|
Cutting System
|
Hydraulic post-cut with Cr12MoV die steel blades for clean, burr-free edges
|
|
Voltage
|
380V/50Hz/3Ph (Fully customizable to local standards)
|
|
Machine Weight
|
Approx. 3.5 Tons (Heavy-duty reinforced structure)
|
Eight Major Advantages
HIGH PRECISION FORMING
Equipped with 18-24 precision-machined roller stations to ensure consistent panel profiles.
DURABLE ROLLER MATERIAL
Made of high-grade GCr15 bearing steel with hard chrome plating for extended service life.
VERSATILE MATERIAL COMPATIBILITY
Capable of processing Galvanized, Galvalume, PPGI, and Aluminum coils.
INTELLIGENT CONTROL SYSTEM
User-friendly PLC touch screen interface for easy operation and parameter setting.
HIGH EFFICIENCY PRODUCTION
Adjustable forming speed (8-15 m/min) maximizes output for large projects.
ROBUST CUTTING SYSTEM
Hydraulic cutting with Cr12MoV blades ensures clean, burr-free cuts.
Customizable Configuration
Voltage and dimensions can be tailored to meet local standards and factory layouts.
Stable Performance
Heavy-duty machine structure (3.5 tons) ensures vibration-free operation during continuous production.
Application Scenarios
This machine is widely used in the construction industry for producing high-quality metal panels.

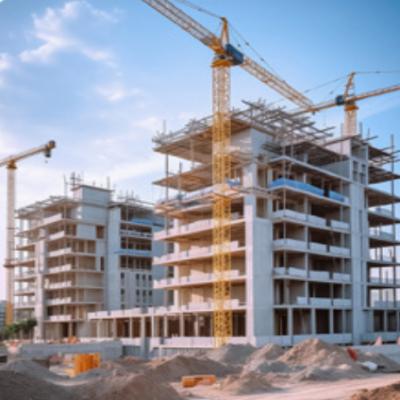

Construction Industry
Steel structure workshops, large-scale warehouses, and commercial building envelopes.
01

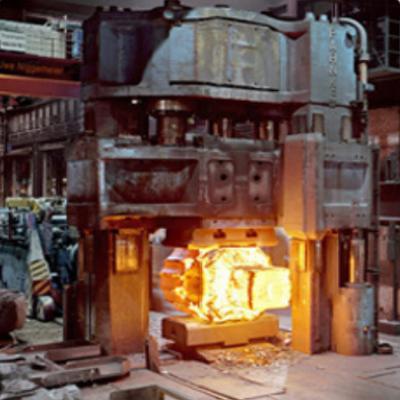

Metallurgical Industry
Steel mills, metal processing plants, and industrial smelting workshops.
02

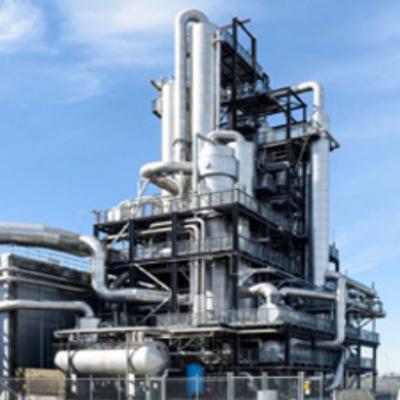

Chemical Industry
Chemical storage facilities, processing plants, and corrosion-resistant equipment shelters.
03

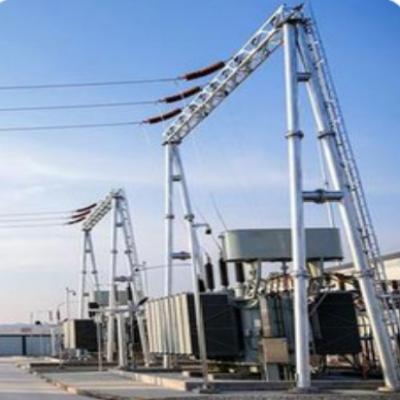

Power Industry
Power plants, power generation stations, and electrical infrastructure facilities.
04
Why Choose This Machine?
Production requirements vary according to market demand and factory planning. Each equipment setup is customized to ensure the line reflects actual operational requirements.
✦ Customer profile drawings (CAD files or physical samples for non-standard profiles)
✦ Steel coil specifications (Galvanized, Galvalume, PPGI, Aluminum, etc.)
✦ Material thickness (0.3–0.8 mm processing range)
✦ Effective panel width (Customizable width and rib spacing)
✦ Production output requirements(Speed adjustment 8–15 m/min via VFD)
✦ Cutting configuration(Hydraulic post-cut with Cr12MoV blades)
✦ Automation preferences(PLC touch screen integration & servo control)
✦ Local voltage standards / Workshop layout(Adaptable power supply & footprint optimization)
