Cable Ladder Roll Forming Machine for Heavy-Duty Cable Support Production

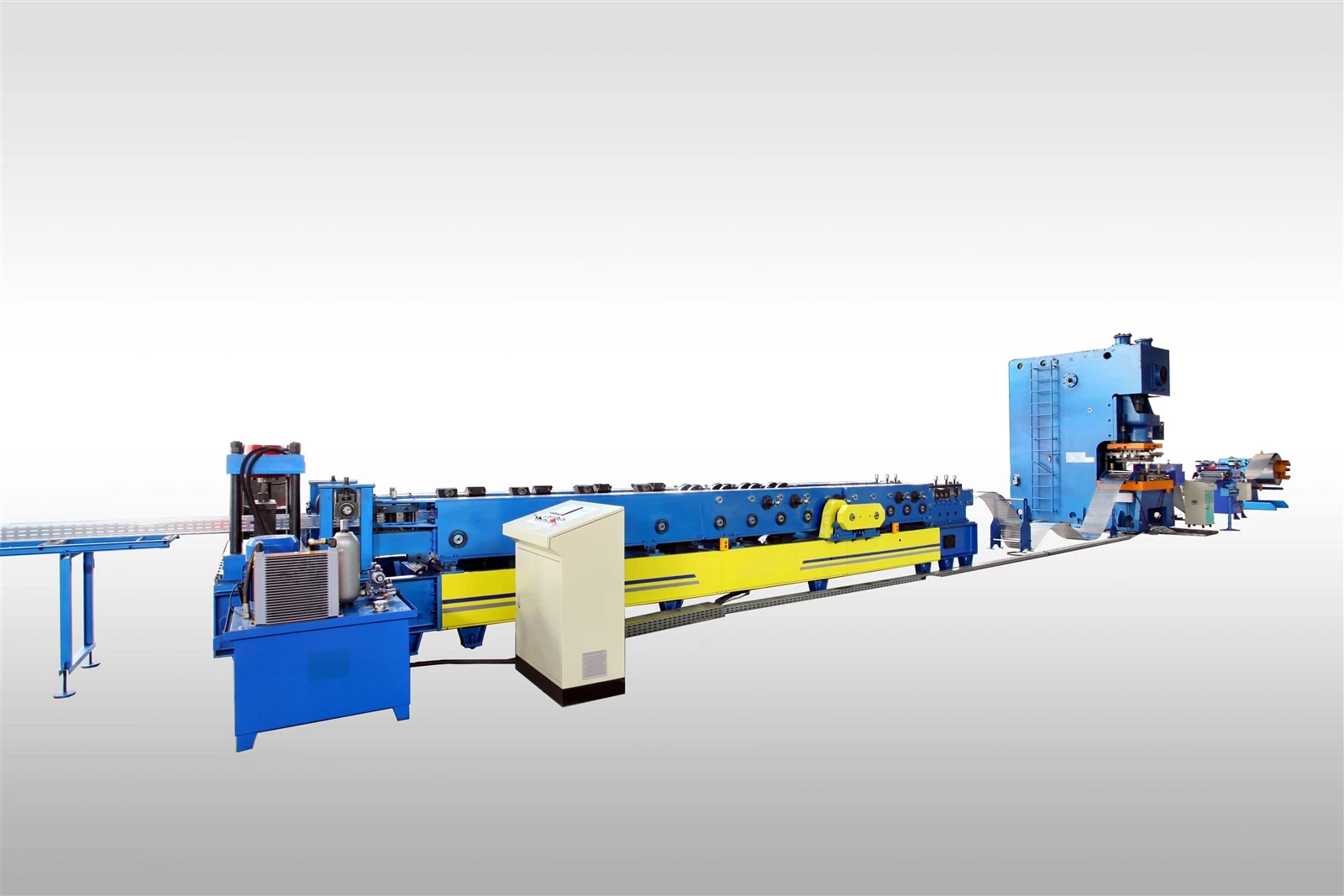

Cable Ladder Roll Forming Machine is designed to manufacture ladder-type cable trays consisting of two longitudinal side rails and multiple cross rungs. The machine continuously forms steel coils into cable ladder profiles through roll forming, punching, cutting, and automatic stacking processes, providing a stable production solution for large-scale cable support projects.
Compared with conventional cable trays, ladder cable tray systems are commonly selected for high-load and long-span cable routing applications because of their open structure, better ventilation, and higher mechanical strength. The produced cable ladders are widely used in power plants, data centers, industrial facilities, and chemical processing projects where heavy cables require reliable overhead support.
The forming line can be customized according to cable ladder specifications, including side rail height, rung spacing, material thickness, and profile design. It supports materials such as galvanized steel, stainless steel, and aluminum to meet different corrosion resistance and load-bearing requirements.
Typical Technical Parameters
| Item | Specification |
|---|---|
| Machine Type | Ladder Cable Tray Roll Forming Machine |
| Production Material | GI Steel, Stainless Steel, Aluminum |
| Material Thickness | 1.5–3.0 mm (Customizable) |
| Coil Width | 100–600 mm (According to profile design) |
| Cable Ladder Height | 50–200 mm |
| Rung Spacing | 100–400 mm (Adjustable) |
| Roll Stations | 12–18 stations |
| Forming Speed | 8–15 m/min |
| Cutting Method | Hydraulic cutting / Flying cutting |
| Drive System | Gearbox motor drive |
| Control System | PLC + Touch Screen |
| Production Mode | Automatic continuous forming |
High-Capacity Cable Ladder Manufacturing for Large Engineering Projects
For infrastructure projects requiring extensive cable routing networks, the Ladder Type Cable Tray Machine provides continuous production capability for customized cable ladder systems with consistent dimensions and mechanical performance.
The equipment is suitable for manufacturing cable ladders used in environments where cable loads, installation distance, and structural stability are critical. Typical applications include data center power distribution systems, industrial automation plants, chemical facilities, and large electrical engineering projects.
The roll forming process improves profile consistency by controlling forming pressure at each roller station, ensuring uniform side rails and accurate rung positioning. This allows manufacturers to supply cable ladder systems with different load ratings, span requirements, and installation configurations.
Production Capability & Application Parameters
| Application Requirement | Machine Capability |
|---|---|
| Heavy Cable Support | Produces reinforced ladder profiles for high cable loads |
| Long Span Installation | Supports customized side rail height and thickness |
| Large Project Supply | Continuous production for bulk cable tray orders |
| Outdoor Installation | Compatible with galvanized and stainless steel materials |
| Data Center Projects | Produces ventilation-friendly ladder cable trays |
| Chemical Industry | Supports corrosion-resistant stainless steel profiles |
| Power Engineering | Suitable for high-voltage cable routing systems |
Hangzhou IUWON Technology Co., Ltd. is one of the most professional ladder cable tray roll forming machine manufacturers and suppliers in China. Please feel free to buy high quality ladder cable tray roll forming machine made in China here from our factory. For price consultation, contact us.
