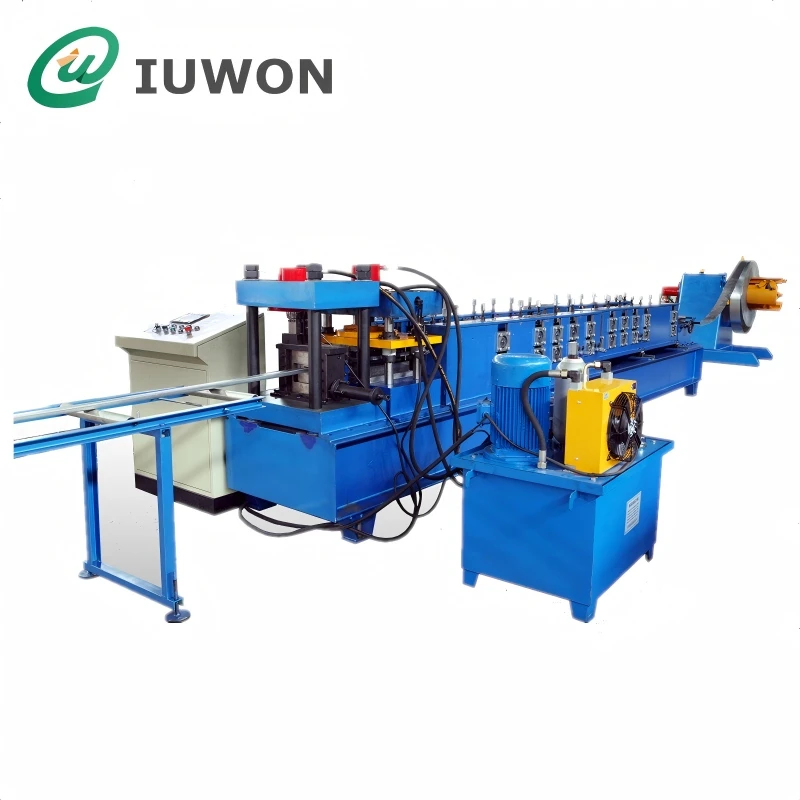

Hangzhou IUWON Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of cable tray forming machine in China. With abundant experience, we warmly welcome you to buy custom made cable tray forming machine from our factory. Good service and reasonable price are available.
Engineering & Manufacturing Capability
The machine is developed with a system-integrated approach to ensure compatibility with different cable tray designs and production requirements.
Custom Profile Tooling
Tailored roller designs based on your exact cable tray specifications.
High-Precision Punching & Cutting
In-house die development for flawless ventilation holes and accurate lengths.
Smart Integrated Control
Fully synchronized electrical and hydraulic systems for stable, automated production.
Industry-Specific Expertise
Extensive experience in manufacturing equipment for electrical infrastructure and cable routing systems.
Main Technical Parameters
| Item | Parameter | Value |
|---|---|---|
| Raw Material | Type | Hot Rolled/Galvanized Coil |
| Width (mm) | 190-500 | |
| Thickness (mm) | 1.8-2.0 | |
| Yield Strength (Mpa) | 230-350 | |
| Product | Profile | C, U |
| Width (mm) | 100-300 | |
| Height (mm) | 50-100 | |
| Producing Speed | 6 m/min | |
| Total Power (kw) | 60 |
Main Equipment Details
| Equipment | Parameter | Value |
|---|---|---|
| 1. Decoiler | Loading capacity | 5T |
| Suitable Coil ID | φ508mm | |
| Suitable Coil OD | ≤φ1400mm | |
| Suitable width | ≤500mm | |
| 2. Leveling device | Motor power | 5.5KW |
| Level Roller Quantity | 9 rollers | |
| 3. Servo Feeder | PLC Brand | Japanese Mitsubishi |
| Servo Motor Brand | Japanese Yaskawa | |
| Servo Motor power | 5.5KW | |
| 4. Punch Press | Press Brand | Yangli |
| Capacity | 315 ton | |
| Punch Frequency | 30 times/min | |
| Die Type | Pneumatic Combined Die | |
| Die Material | DC53 (HRC60-62) | |
| 5. Roll forming device | Main Motor power | 15KW |
| Roller Material | GCr15 | |
| Axle Support Type | Box Type | |
| Model Adjust Type | Infinite Motor Adjust | |
| Adjust Motor power | 1.5KW×2 | |
| 6. Cutting device | Cutting Type | Post-Cut without waste |
| Blade Material | Cr12MoV | |
| Blade Quantity | 8 sets | |
| 7. Control system | PLC Brand | Japanese Mitsubishi |
| Frequency Inverter | Japanese Mitsubishi | |
| Touch Screen | Japanese Mitsubishi | |
| 8. Hydraulic System | Main Valve | German Rexroth |
Application Fields
- Power distribution and electrical engineering projects
- Data centers and telecom infrastructure
- Industrial plants and manufacturing facilities
- Commercial buildings and infrastructure construction
This machine supports large-scale, standardized production of cable tray systems.
Value for Manufacturers
Increase Production Capacity
Continuous roll forming enables high-volume output for large electrical projects.
Reduce Material Waste
Optimized feeding and forming processes minimize scrap and improve material utilization.
Ensure Product Standardization
Accurate forming and punching ensure trays meet installation and load-bearing requirements.
Support Flexible Production
Quick adjustment or tooling changes allow manufacturers to respond to different project specifications.
Everything You Need To Know
Q: What types of cable trays can this forming machine produce?
A: The machine can manufacture various cable tray types, including perforated trays, ladder trays, and solid-bottom trays. It can also be customized to produce different widths, heights, and structural designs based on project requirements.
Q: What materials are suitable for cable tray production?
A: It typically processes galvanized steel, stainless steel, and aluminum coils. These materials provide the necessary strength, corrosion resistance, and durability for different installation environments.
Q: How does the machine handle complex hole patterns?
A: The machine is equipped with a servo or hydraulic punching system that allows precise and repeatable hole, slot, and perforation patterns. This ensures compatibility with installation standards and improves ventilation and cable management efficiency.
Q: Can the machine support different tray sizes and specifications?
A: Yes, the machine can be designed with adjustable forming systems or interchangeable tooling, allowing manufacturers to produce multiple tray sizes and specifications on a single production line.
