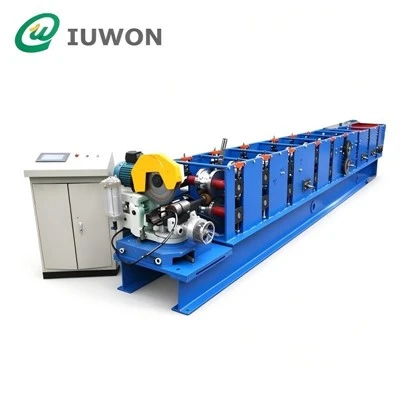

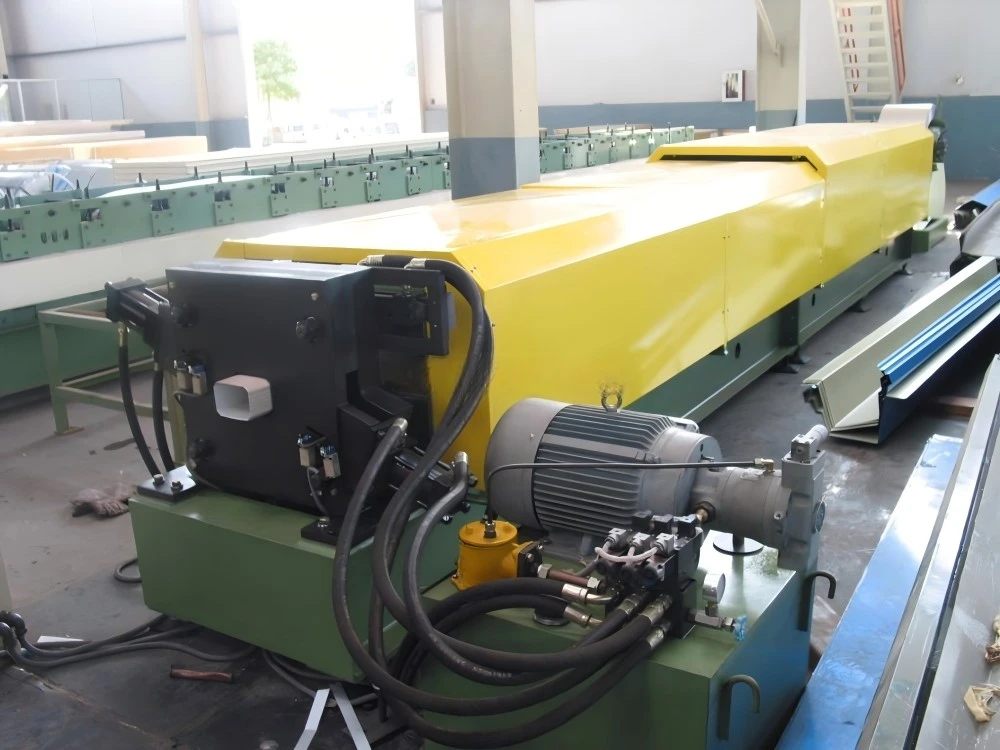

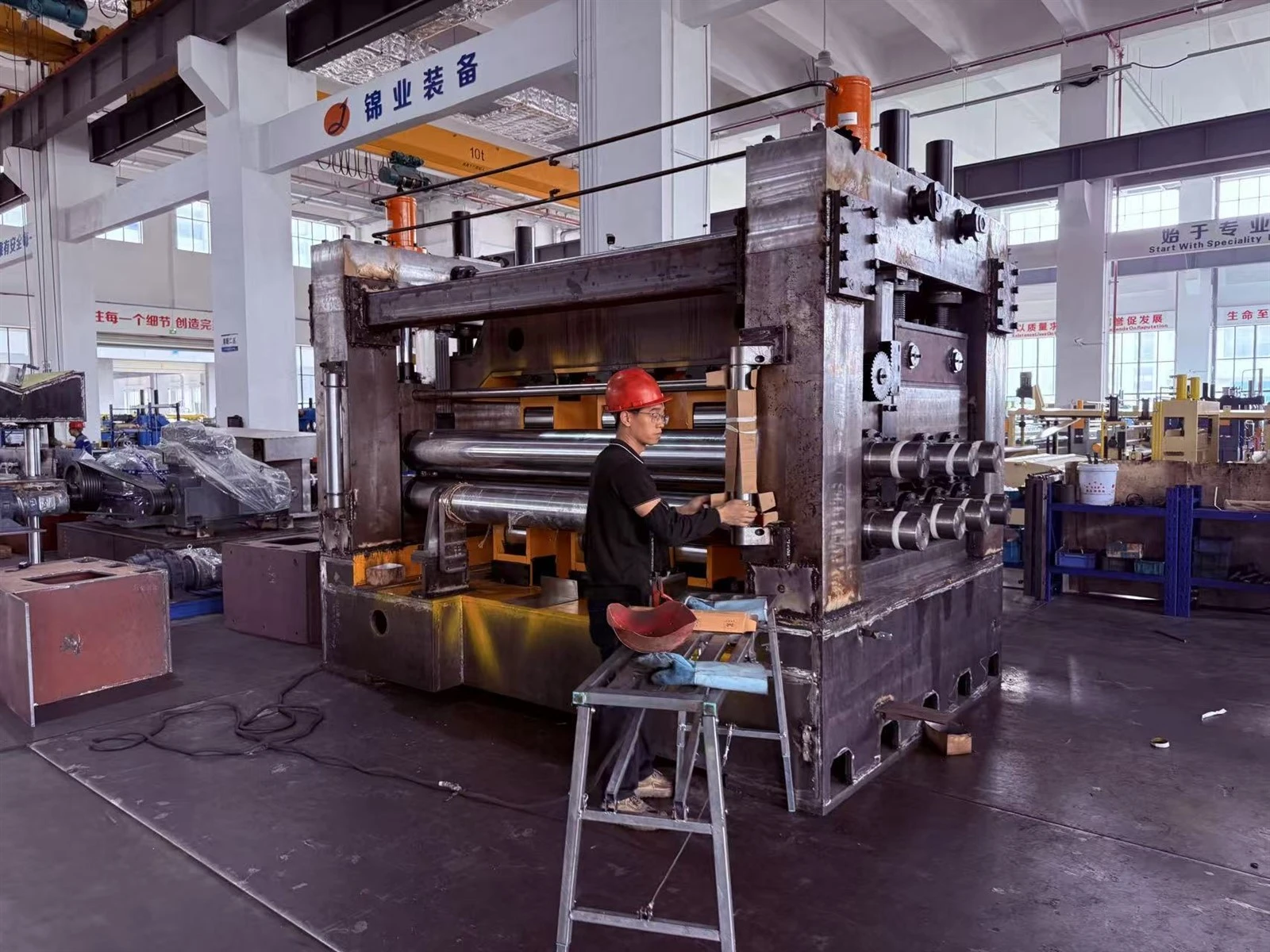

Gutter Downspout And Elbow Roll Forming Machine

Hangzhou IUWON Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of gutter downspout and elbow roll forming machine in China. With abundant experience, we warmly welcome you to buy custom made gutter downspout and elbow roll forming machine from our factory. Good service and reasonable price are available.

The numerical figures are published specifications for a comparable equipment configuration, included as an initial engineering reference only. They are not confirmed IUWON model specifications or guaranteed production results. Gutter forming, downspout forming, and elbow production may use different machines or operating parameters. Final material limits, dimensions, speed, elbow capacity, and equipment scope must be confirmed in the IUWON quotation.

The forming rollers must match the selected profile. Different channel shapes may require different tooling, even when they are manufactured from similar metal coils.

Before ordering, manufacturers should identify their core gutter designs, material thicknesses, and standard product dimensions. This information helps determine whether a dedicated gutter line or additional profile tooling is appropriate.

Downspout Production



Downspouts transport water from the gutter toward the ground drainage system. Their dimensions and joint construction must match the fittings used in the intended installation.

Round downpipes and rectangular downpipes follow different forming geometries. A round section requires progressive circular forming, while square and rectangular sections require controlled corner formation and accurate side dimensions.

For each required profile, confirm:

• Pipe diameter or width and depth.
• Material grade and thickness.
• Longitudinal seam construction.
• Finished length.
• Connection dimensions for elbows and outlets.

If several pipe sizes are required, the equipment supplier should confirm the available size range and whether additional tooling or setup changes are necessary. A single machine should not be assumed to cover every profile without engineering verification.

Customize Your Gutter Downspout and Elbow Roll Forming Machine

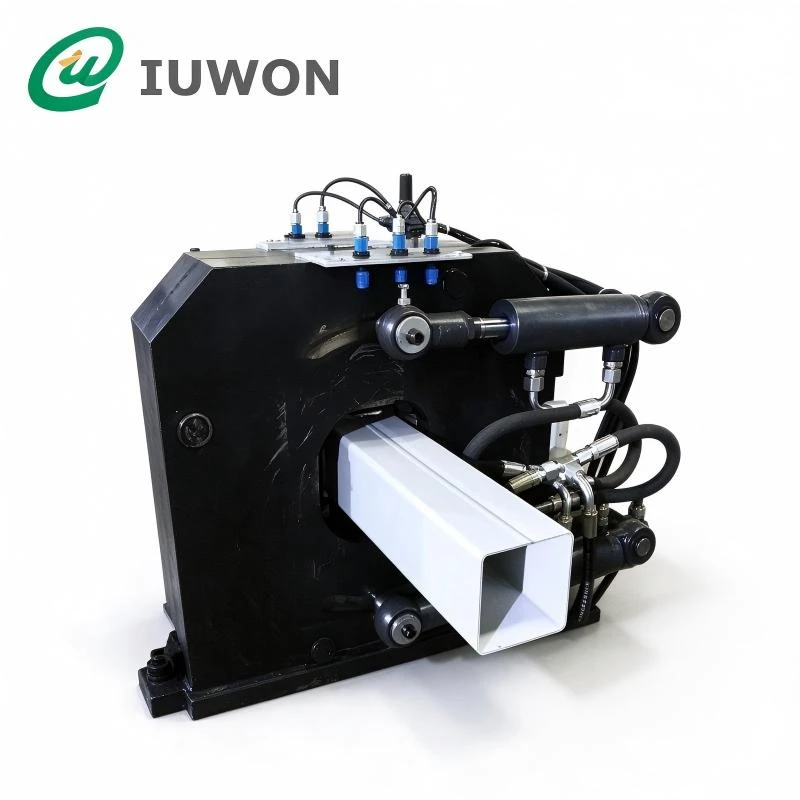

Elbows redirect rainwater around roof edges, building walls, and other installation obstacles. Their geometry must match the downspout section so that the components can be assembled without excessive gaps or forced alignment.

Depending on the product design, elbows may be manufactured by bending prepared pipe sections, using dedicated elbow-forming equipment, or employing an integrated system that combines straight-pipe and elbow production functions.

The appropriate process depends on the required elbow design. A straight-pipe roll former does not automatically produce finished elbows unless the required bending or forming equipment is included.

Gutters, downspouts, and elbows must fit together as a drainage system. Even when each component is within its own dimensional tolerance, incompatible connection sizes can create assembly problems.

During product development, check the interfaces between:

• Gutter outlets and downspout inlets.
• Straight pipes and elbow ends.
• Elbows and connecting pipe sections.
• Pipe sections and wall-mounted brackets.
• Gutter sections and joining accessories.

A drawing set showing these interfaces gives the equipment supplier a clearer basis for assessing the required forming and end-processing operations.

For manufacturers supplying distributors or contractors, maintaining compatible dimensions across the product range can simplify installation and reduce complaints caused by mismatched components.

The intended material affects forming behavior, surface appearance, and the required tooling configuration.

The equipment must be selected for the actual material grade and thickness. A configuration that processes one steel specification may not be suitable for every aluminum alloy or stainless-steel grade.

For coated products, the finished appearance should be checked after both forming and elbow production. Surface marks may occur during material feeding, roller contact, bending, or downstream handling, so inspection should cover the entire manufacturing process.

Gutter Downspout and Elbow Roll Forming Machine Capacity

The output of a combined drainage-component operation depends on more than the running speed of the straight-pipe line. Gutter forming, downspout cutting, elbow production, and finished-product handling can each become a production constraint.

When planning capacity, consider the expected ratio of straight pipes to elbows, the number of gutter profiles produced, standard product lengths, and the frequency of tooling changes.

For example, a factory may be able to form straight downpipes continuously but still fall behind on orders if elbow production cannot keep pace with the required component mix. Conversely, a factory producing project-specific batches may prioritize flexible settings and product changeovers over maximum running speed.

The quotation should therefore identify the operating conditions behind its capacity figures, including the material, profile, finished length, and elbow design.

The production arrangement should be defined according to the required component range and factory workflow.

These functions may be supplied as separate machines or as part of an integrated arrangement, depending on the design. The final proposal should clearly distinguish standard equipment from optional units so that the buyer can assess the complete investment.

The required gutter profiles, pipe sections, elbow angles, and material specifications depend on the target market and the building system being supplied.
