Hangzhou IUWON Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of high speed solar strut roll forming machine in China. With abundant experience, we warmly welcome you to buy custom made high speed solar strut roll forming machine from our factory. Good service and reasonable price are available.
High Speed Solar Strut Roll Forming Machine Specifications
| Item | Specification |
|---|---|
| Machine Type | Solar Strut Roll Forming Machine |
| Application Material | Steel Coil / Customized Metal Material |
| Profile Type | Solar Strut Channel / Customized Profile |
| Forming Process | Continuous Cold Roll Forming |
| Material Thickness | Customized According to Profile Requirements |
| Profile Dimension | Designed Based on Customer Drawings |
| Roll Forming Stations | Configured According to Profile Structure |
| Punching System | Optional / Customized |
| Cutting Method | Customized According to Production Requirements |
| Drive System | Mechanical Transmission System |
| Control System | PLC Control System |
| Production Speed | Customized According to Machine Configuration |
| Coil Feeding System | Customized According to Material Requirements |
| Machine Layout | Designed According to Factory Space and Production Flow |
Solar Strut Roll Forming Machine Features

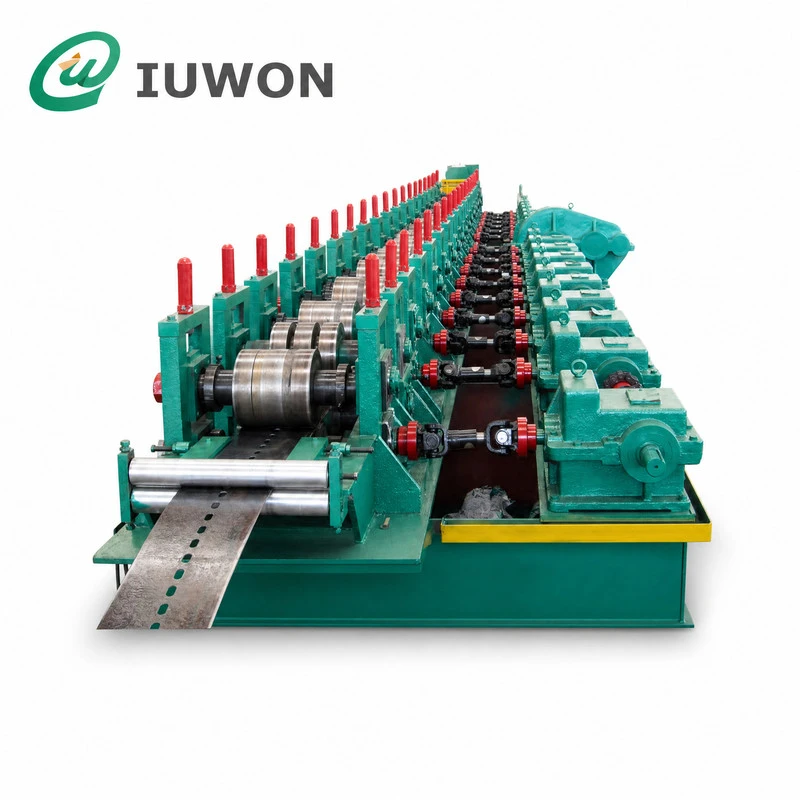

Continuous Roll Forming Production
The machine adopts a continuous forming process where metal coils are gradually shaped through multiple roller stations. This production method helps maintain profile consistency and supports stable output for large-volume solar mounting component manufacturing.
Profile Customization Based on Drawings
Solar strut profiles may vary in channel dimensions, hole patterns, and connection structures. The machine can be designed according to specific profile drawings, including roller arrangement, tooling design, and auxiliary units.
Integrated Punching and Cutting System
According to production requirements, the machine can be equipped with punching and cutting units to process mounting holes and finished lengths during production. The configuration can be adjusted based on profile design and application needs.
High Speed Roll Forming Machine Application Range
The High Speed Solar Strut Roll Forming Machine is mainly used for manufacturing metal strut channels and support profiles for photovoltaic mounting systems.
Typical applications include:
- Solar panel mounting structures
- Photovoltaic support frames
- Roof solar installation systems
- Ground-mounted solar structures
- Industrial solar support components
The produced strut profiles are commonly used with brackets, clamps, and connecting accessories to build solar panel support systems.
Profile Design and Tooling Selection
Solar Strut Profile Review
The profile drawing defines the roller design and forming sequence. Key details include profile width, height, wall thickness, bend positions, and hole patterns.
Roller Tooling Design
The rollers are designed according to the solar strut cross-section. The tooling arrangement considers material thickness, bend radius, and required profile dimensions.
Material and Forming Requirements
Material type, thickness, and surface treatment affect forming conditions and finished profile accuracy. These specifications should be confirmed before tooling design.
Multiple Profile Production
For different solar strut profiles, the machine configuration is determined according to product drawings, tooling requirements, and production needs.
How Do Material Thickness and Properties Affect Forming Accuracy?
Material thickness affects the forming force required at each roller station and influences springback after bending. Different materials may produce different finished dimensions under the same tooling conditions.
Before production, the customer should confirm the material grade, thickness, and surface treatment. These specifications allow the forming rollers and production settings to be developed according to the actual material behavior.
