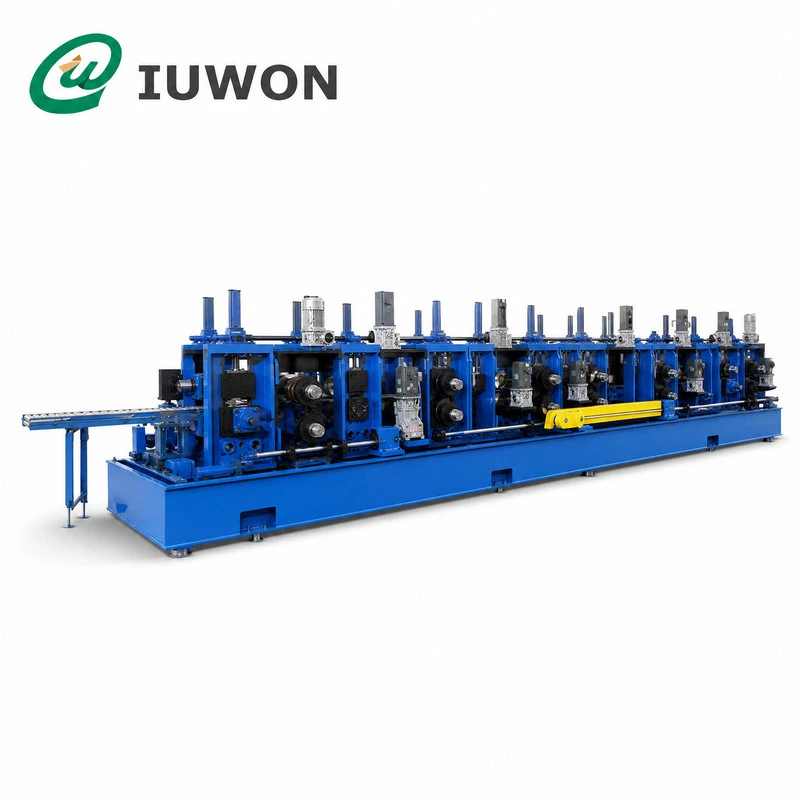

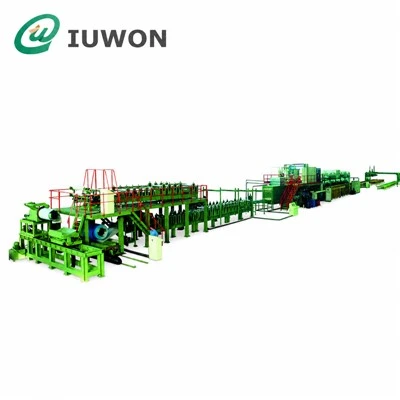

Solar Panel Structure Machine Structure

• Decoiler and Feeding System: Supports the steel coil and controls strip entry into the production line.
• Leveling and Guiding Units: Help prepare and position the strip before it reaches the forming stations.
• Roller Stations: Hold profile-specific tooling that progressively forms the steel into the required structural section.

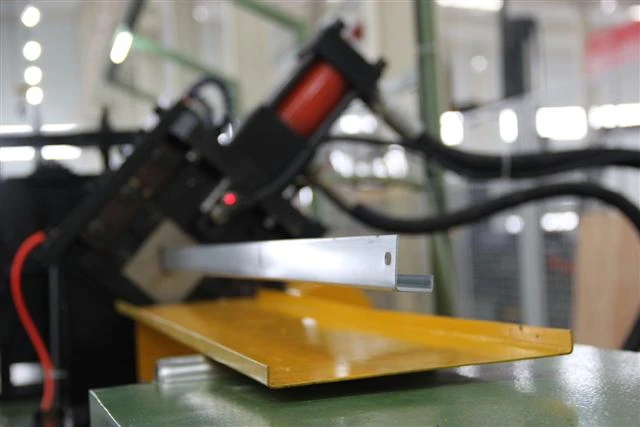

• Punching Equipment: Processes specified mounting holes or slots when required by the product drawing.
• Cutting Assembly: Separates the continuous profile into individual structural members.
• Electrical Control System: Coordinates the selected feeding, punching, measurement, and cutting functions.

The component arrangement depends on whether the customer requires a basic forming line or an integrated line with punching and additional handling equipment.

Mounting Hole Layout & Structural Connections

Solar panel structures rely on connection points to join rails, brackets, supports, and other mounting components. Hole diameter, slot length, pitch, and edge distance should be taken from the structural drawing because these dimensions affect fastener positioning and installation alignment.

For profiles with repeated mounting slots, the production line needs a defined reference for the punching positions. The pattern may repeat at a fixed interval or vary along the component length according to the mounting design. If several profiles share a similar cross-section but use different hole layouts, the machine configuration should account for the required changeover method.

The connection design also affects the position of punching equipment relative to the forming stations. Features located on a flat strip may be processed before the strip is fully formed, while other layouts may require a different processing arrangement. The final sequence should be determined from the profile geometry, tool access, and hole-position requirements.

Can One Machine Produce Different Solar Panel Structure Profiles?

The answer depends on how much the profiles differ in cross-section, material thickness, and processing requirements. Profiles with similar geometry may be suitable for a common machine platform with interchangeable tooling or adjustable guides. Profiles with different web widths, flange arrangements, reinforcement ribs, or return lips may require separate roller sets or a different forming configuration.

Buyers should provide drawings for all intended profiles, including the material specification and any mounting features. The machine configuration can then be evaluated for tooling changeover, adjustment requirements, and the feasibility of producing the full product range on one line.
