Hangzhou IUWON Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of solar mounting strut channel roll forming machine in China. With abundant experience, we warmly welcome you to buy custom made solar mounting strut channel roll forming machine from our factory. Good service and reasonable price are available.

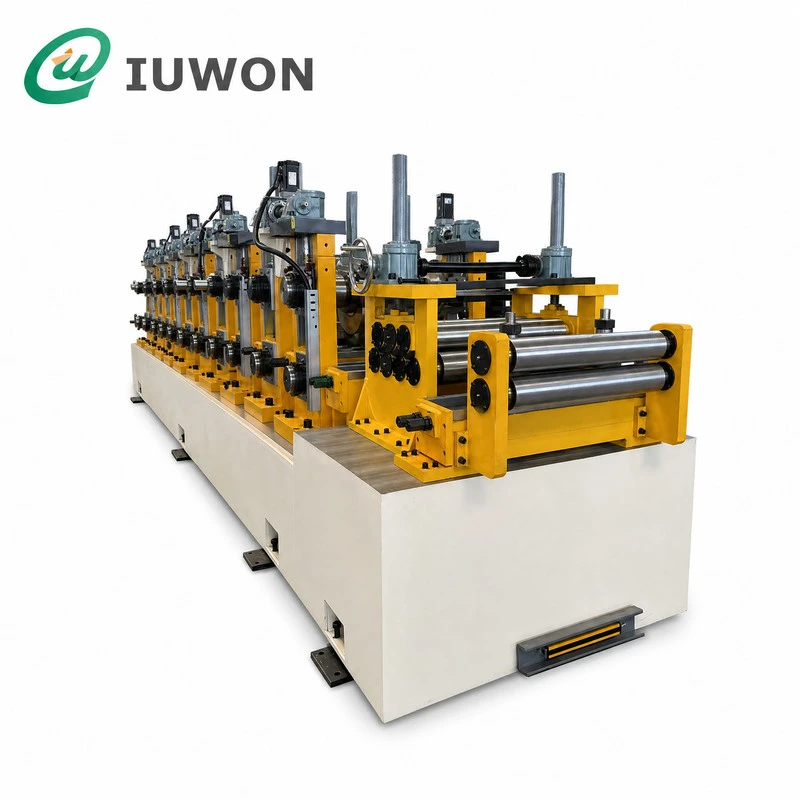

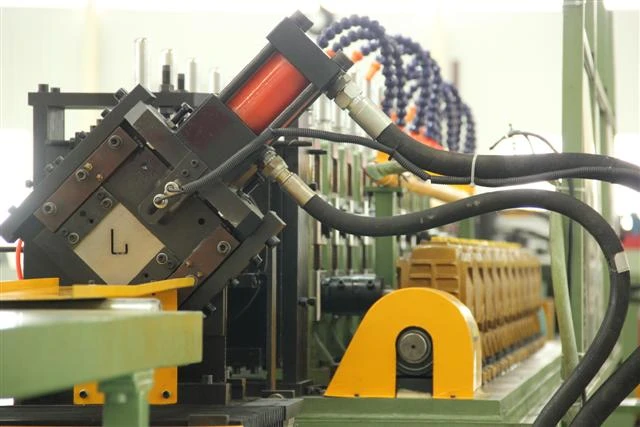

Solar Mounting Strut Channel Roll Forming Machine Specifications
|
Design Item |
Configuration Basis |
|---|---|
|
Finished Profile |
Solar Mounting Strut Channel |
|
Strip Material |
Galvanized Steel / Specified Carbon Steel |
|
Section Geometry |
U-Channel, Slotted Channel, or Drawing-Specific Design |
|
Web Dimensions |
Customer Profile Drawing |
|
Side-Wall Geometry |
Profile Dependent |
|
Channel-Lip Configuration |
According to Fastener Design |
|
Strip Thickness |
Specified Material Range |
|
Forming Tooling |
Custom-Designed Roller Set |
|
Perforation Method |
Optional Punching |
|
Cut Length |
Programmable According to Requirements |
|
Drive and Control |
Configured for the Production Line |
|
Auxiliary Equipment |
Selected According to Coil and Handling Needs |
The final machine specification should be established from approved engineering drawings and the required production scope. Values such as maximum material thickness, line speed, and dimensional tolerance depend on the selected machine configuration and should not be assumed without technical confirmation.
Engineering the Strut Channel Cross-Section
A strut channel is defined by more than its external width and height. The web provides the main mounting surface, the side walls establish the channel depth, and the inward-facing lips create the opening used by compatible fastening hardware. Some designs incorporate additional grooves or ribs along the web and side walls to achieve a specified section geometry.
Each formed feature affects the material's path through the roller stations. For example, a channel with a narrow opening and short inward lips requires a different forming progression from one with broad lips or multiple reinforcement bends. The sequence must allow the side walls to develop without prematurely closing the opening or distorting the web.
IUWON can configure the forming tooling around the specified section drawing. When several channel models are required, the design review should compare their web dimensions, side-wall heights, lip geometry, and bend positions to establish which models can share a tooling platform and which need separate roller sets.
Solar Mounting Strut Channel Machine Capabilities
Channel Opening and Lip Geometry
The machine can be configured to produce the opening width, lip length, and edge angle defined in the channel drawing. These features must match the specified fastening system, particularly when channel nuts slide along the internal space and engage beneath the lips.
Longitudinal Reinforcement Features
Profiles with additional ribs or formed grooves require dedicated roller geometry and an appropriate forming order. Their position and depth should remain consistent along the channel so that the finished section matches the structural design.
Punching for Installation Flexibility
An optional punching system can produce mounting holes or elongated slots. The punching configuration is selected from the required feature dimensions and location, rather than treating every channel as having the same standard perforation pattern.
Application Scope
Solar mounting strut channels are used in photovoltaic support systems for connecting rails, brackets, and mounting accessories.
- Rooftop Solar Systems: Connect mounting rails and support brackets.
- Ground-Mounted Solar Arrays: Support structural connections between mounting components.
- Solar Panel Rail Systems: Provide attachment points for clamps and fasteners.
- Solar Carports: Connect selected members of photovoltaic support structures.
- Modular PV Installations: Enable adjustable assembly using compatible channel nuts and brackets.
What Determines Whether Different Strut Channel Models Can Share the Same Machine?
The main factors are the similarity of the cross-sections, the material thickness range, and the processing requirements. Models with matching lip geometry and similar section proportions may be suitable for a shared machine platform, while channels with substantially different openings, rib arrangements, or bend positions may require separate roller tooling.
Buyers should submit drawings for all planned models rather than only the most common size. This allows the equipment configuration to be evaluated against the full product range, including the time and procedure required for tooling changes.
