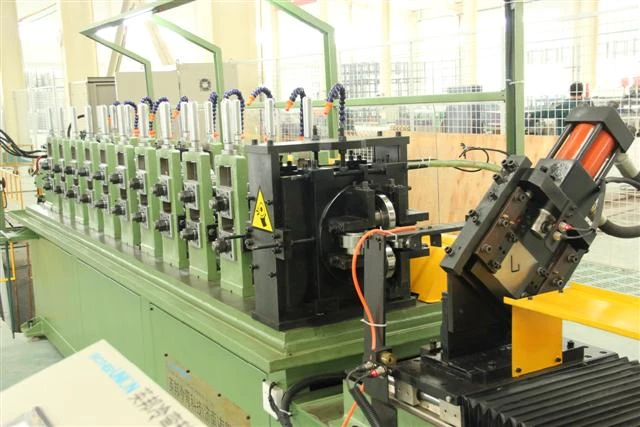

Hangzhou IUWON Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of Solar PV Bracket Roll Forming Machine in China. With abundant experience, we warmly welcome you to buy custom made Solar PV Bracket Roll Forming Machine from our factory. Good service and reasonable price are available.
Key Machine Parameters
| Item | Specification |
|---|---|
| Product Type | Solar PV Bracket |
| Steel Type | GI / Carbon Steel |
| Thickness Range | According to Profile |
| Profile Size | Customized |
| Forming Method | Continuous Cold Roll Forming |
| Forming Stations | Profile Dependent |
| Roller Tooling | Customized Roll Set |
| Punching System | Profile Based |
| Cutting Type | Hydraulic Cutting |
| Control | PLC + Touchscreen |
| Line Speed | According to Material & Profile |
Profile Matching & Tooling Selection
The roller tooling is designed according to the actual PV bracket cross-section rather than using a standard roll set. Profile width, side height, flange position, bend radius, and material thickness determine the roller geometry and forming sequence.
For thicker galvanized steel, the forming stages need to distribute the bending deformation gradually. The roller clearance and forming angles are adjusted between stations to reduce edge distortion and maintain the required bracket dimensions.
When the bracket includes different flanges, reinforcement sections, or mounting features, these details also affect the tooling arrangement. Buyers should provide the complete profile drawing and material specification so that the roller stations, shaft configuration, and punching position can be matched to the required PV bracket.
Key Features
Profile-Specific Roll Tooling
Roller geometry is configured according to the bracket cross-section, material thickness, flange dimensions, and required bend radius.
Integrated Punching Configuration
The punching system can be arranged for specified hole diameters, pitches, and positions according to the PV mounting design.

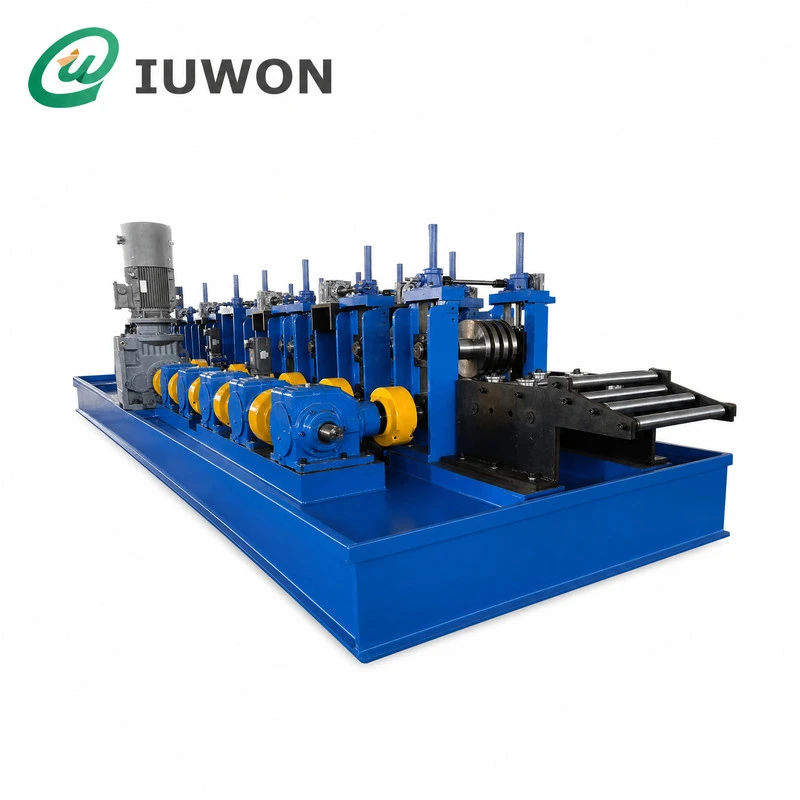

Continuous Cold Forming
The steel strip passes through multiple forming stations and is progressively shaped without repeated manual bending between operations.
PLC-Based Production Control
The control system manages key production parameters such as feeding, punching position, length measurement, and cutting operation.
Forming Process
- Coil Feeding: The steel strip enters the line through an adjustable guiding system.
- Progressive Forming: Multiple roller stations gradually form the base, side sections, and flanges.
- Hole Processing: Required mounting holes or slots are produced according to the profile drawing.
- Profile Calibration: Final forming stations adjust the finished cross-section.
- Length Cutting: The formed PV bracket is cut to the specified length.
PV Bracket Punching & Cutting Configuration
The punching and cutting arrangement is determined by the bracket's installation requirements. Mounting holes can be positioned along the profile according to the required pitch, edge distance, and connection structure.
The forming line can combine continuous profile forming with punching and length cutting. This allows the bracket to leave the line as individual sections with the required cross-section, hole pattern, and finished length.
Optional Processing Arrangement
| Processing Stage | Available Option |
|---|---|
| Coil Feeding | Manual / Hydraulic |
| Material Straightening | Optional |
| Entry Alignment | Adjustable Guides |
| Profile Forming | Dedicated Roller Tooling |
| Mounting Hole Punching | Optional |
| Slot Punching | Optional |
| Profile Notching | Optional |
| Length Cutting | Hydraulic Cut-Off |
| Servo Feeding | Optional |
| Length Measurement | Encoder |
| Material Collection | Run-Out Table |
| Automatic Stacking | Optional |
| Control Interface | Touchscreen HMI |
How Does Punching Affect PV Bracket Production?
Punching accuracy directly affects how the finished PV bracket connects with rails, clamps, bolts, or other mounting components. Hole diameter, pitch, edge distance, and longitudinal position should be defined from the assembly drawing before the machine is configured. For brackets with multiple hole rows or repeated mounting patterns, the punching unit must be positioned in relation to the profile centerline so that the holes remain consistent after the steel strip passes through the forming section.
During continuous production, punching also needs to be coordinated with material feeding and length measurement. An encoder can monitor strip movement while the PLC controls the programmed punching position, allowing repeated holes or slots to be processed at specified intervals. For thicker galvanized steel, punching force, tool clearance, and die geometry need to match the material thickness to reduce burrs, deformation around the holes, or displacement of the formed profile.
For machine configuration, buyers should provide the complete hole layout together with the PV bracket profile drawing, including hole diameter, pitch, edge distance, tolerance, and finished length. This information allows the punching tooling, feeding system, forming sequence, and cutting position to be configured as one production system rather than treating punching as a separate operation.
